REVIVE — QUAD LFO MIDI CC GENERATOR
4 Independent LFOs • Encoder Control • Hand-Built in Northern Ireland
Free-running or MIDI clock-synced — pair with any clock source for tempo-locked sweeps
4
LFOs
A–D
MIDI Outs
8
Save Slots
9–12V or USBC
Power
What Does It Do?
REVIVE is a standalone 4-LFO MIDI CC generator. Each of its four LFOs runs completely independently — its own waveform, speed, depth, MIDI channel, CC number and output routing — sending smooth, evolving modulation to your synths, effects and modular gear over regular 5-pin DIN MIDI.

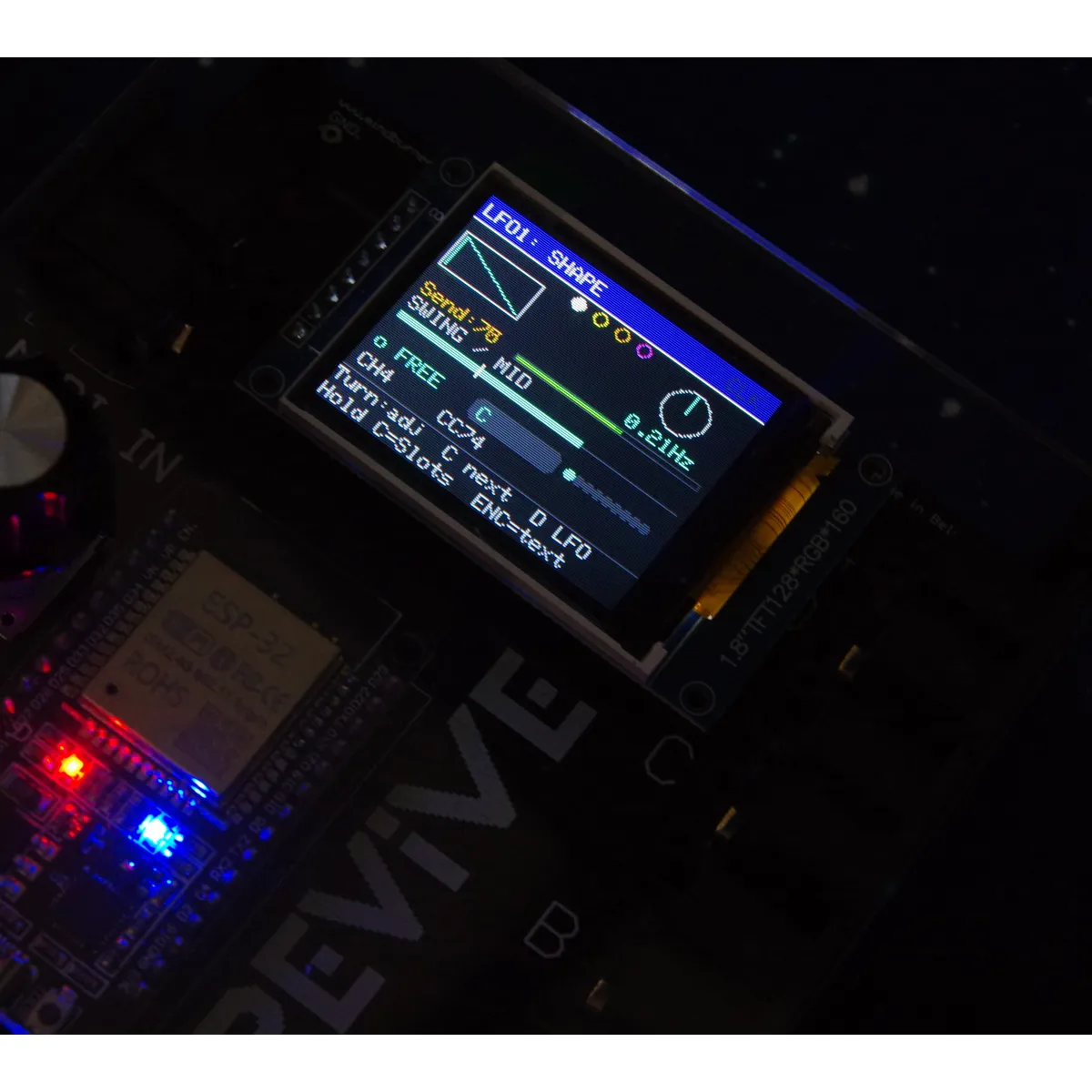

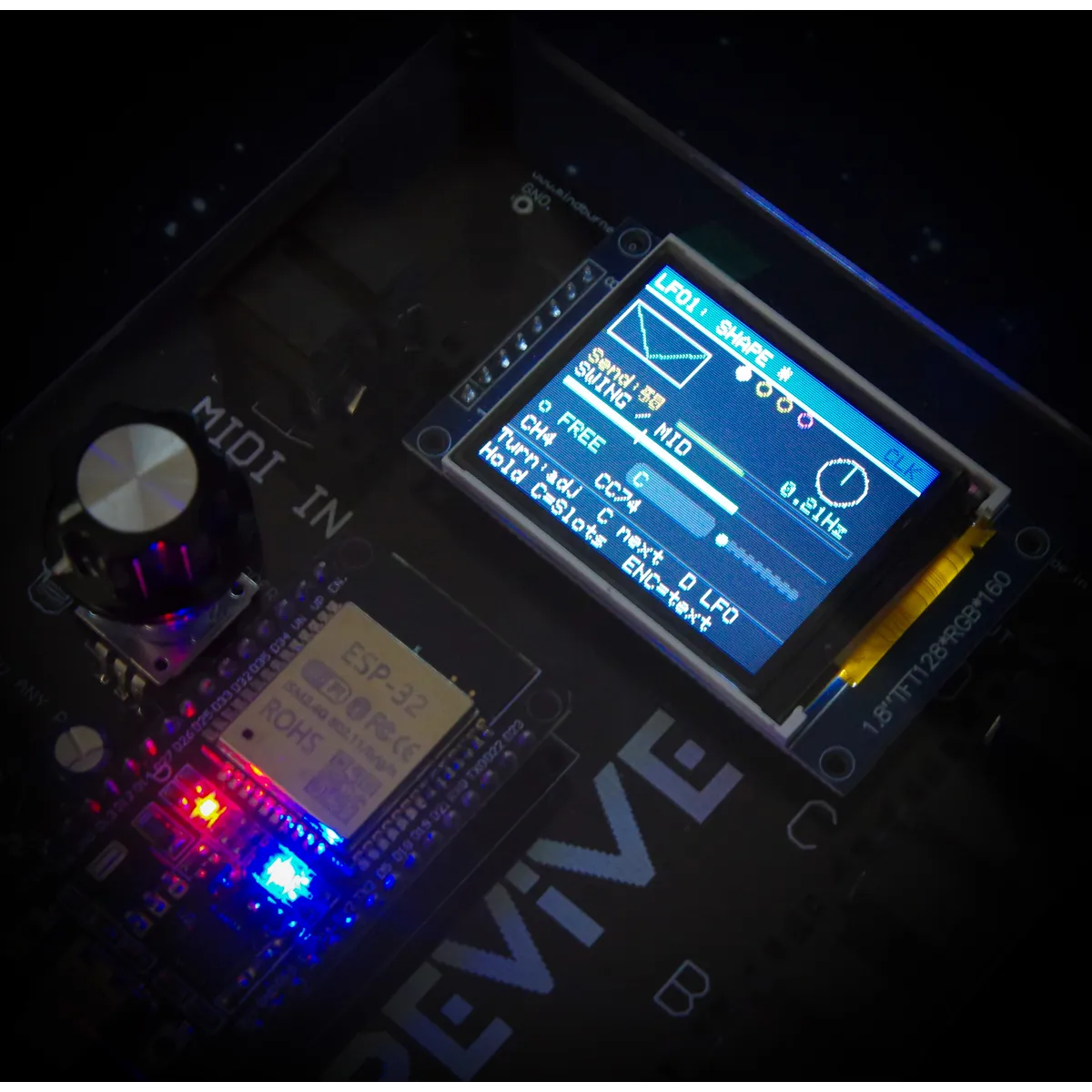

Run each LFO free at its own rate — from fast vibrato-speed wobble right down to a genuinely glacial ~8-minute sweep — or lock it to incoming MIDI clock for tempo-synced modulation. Store up to 8 complete 4-LFO patches on board, and switch anytime between a full-screen icon/dial view or a classic text readout, whichever you prefer to work in.
Features
- 4 independent LFOs — sine, triangle, inverted triangle, saw up/down, square, sample & hold
- Free-running (0.002–20Hz) or clock-synced (1/32 note to 4 bars)
- Full MIDI thru — merges notes, clock and CC without interrupting your chain
- Single rotary encoder navigation — fast, tactile, one-handed editing
- 8 onboard save slots with custom naming
- MIDI Learn — grab channel/CC straight from a controller
- Flexible output routing — any single output, adjacent pairs, all 4, or muted per LFO
- Global mute — one press silences all 4 outputs instantly for live use

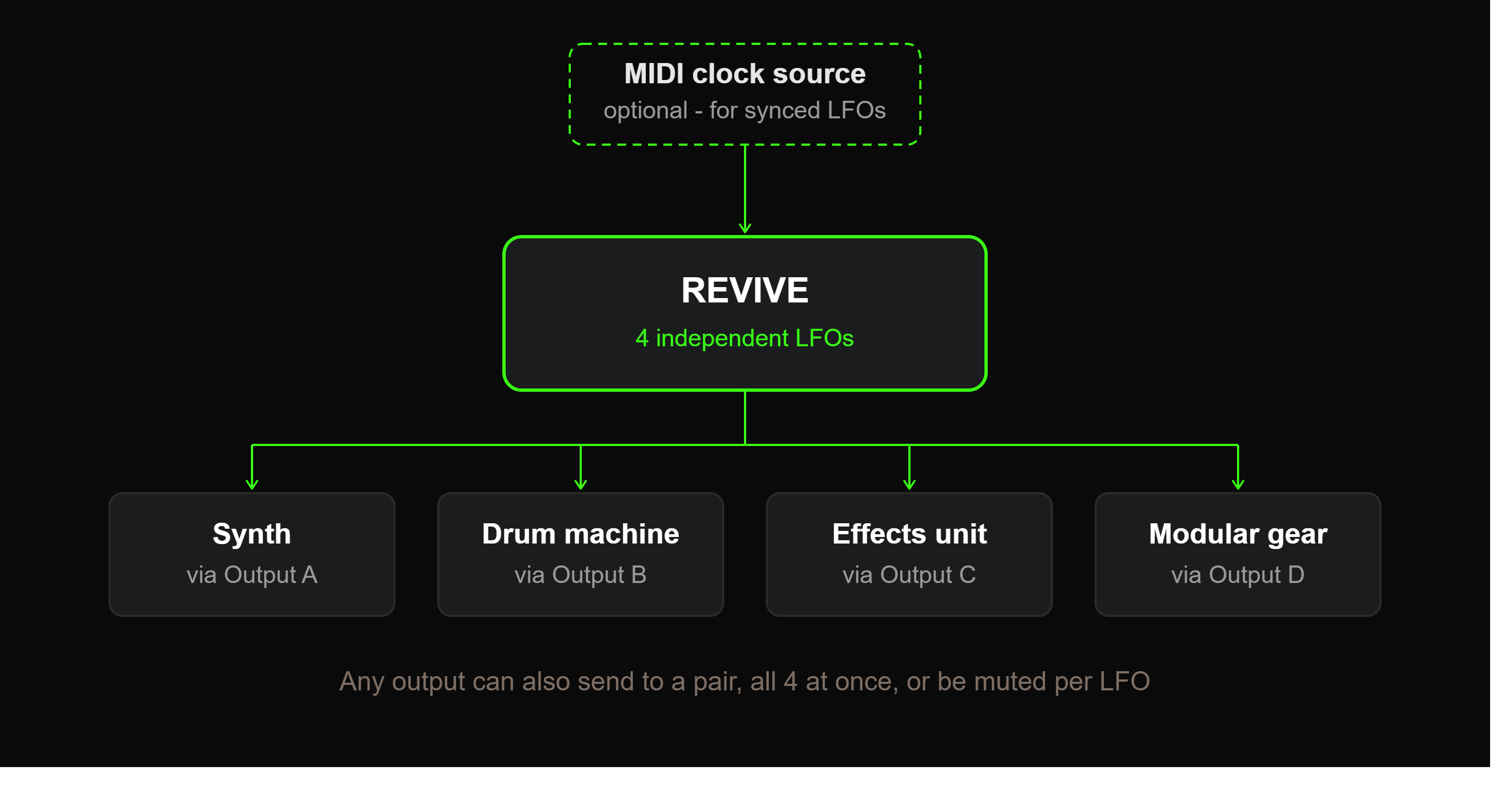

How Do I Connect It?
- (Optional) Plug a MIDI clock source — a Mindburner Masterclock, or your DAW — into REVIVE's MIDI IN for tempo-synced LFOs. Skip this if you're only using free-running LFOs, which need no clock at all
- Connect any of REVIVE's 4 MIDI OUT jacks to the synths, effects or modules you want to modulate
- Plug in a 9–12V power supply (2.1mm plug, any polarity — not supplied) or USB C
4 INDEPENDENT LFOs • ENCODER CONTROL • 8 SAVE SLOTS
Studio-grade modulation for your MIDI rig
MINDBURNER MIDI PRODUCTS
Hand-built in Belfast, Northern Ireland
Product Code: REVIVE
Brand: Mindburner MIDI
Product Condition: New
weight: 300.0g
