PAM
MIDI-to-CV Converter for Vintage Analogue Synths • Hand-Built in Northern Ireland
1V/Oct
CV Output
Gate / S-Trig
Switchable
Portamento
On-Device Glide
9-12V
DC or USB
Bring your CV/Gate synth into the MIDI world. PAM converts incoming MIDI into precise analogue control voltage and gate signals, with smooth portamento — no computer required.
1V/Oct CV · Gate & S-Trig · Portamento
What It Does
Accurate 1V/Octave CV
Precision DAC output.
Gate & S-Trig Outputs
Drives both modern gate or vintage S-Trig synths.
Smooth Portamento
Adjustable glide between notes, on-device.
Root Note Offset
Shift the CV reference point across C1–C4 to suit any synth's range. Transpose ±12 also.
Note Range Filter
Ignore notes outside your synth's playable range.
On-Screen Calibration
Dial in accurate tuning to compensate for off-spec PSUs and synths.
MIDI Activity Indicator
See incoming MIDI at a glance. Channels 1–16 and OMNI mode.
Proven on Vintage Gear
Tested on Moog Source, Teisco 60F, and Sequential Pro-One.
Tech Specifications

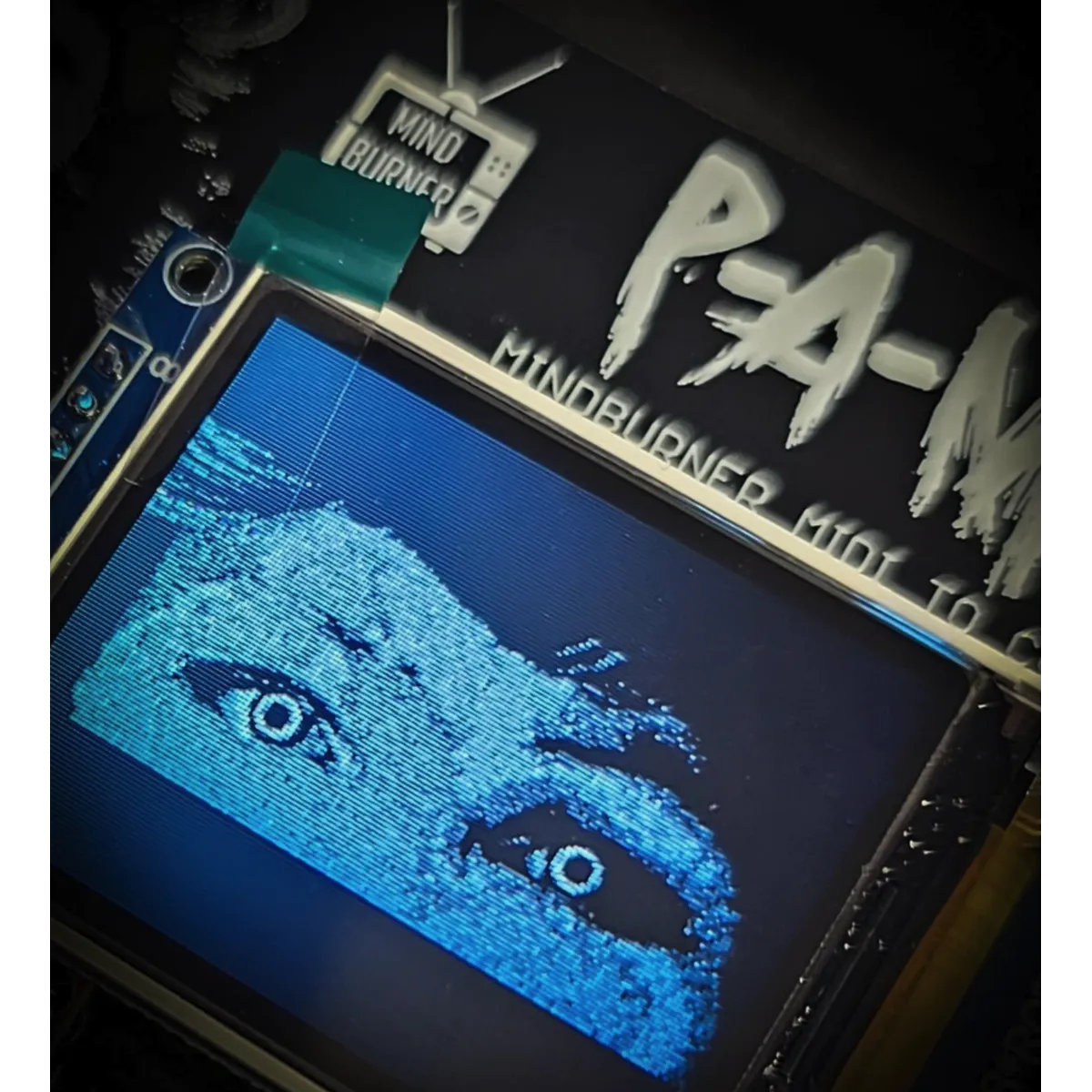

| Display | Colour TFT calibration & status screen |
| MIDI Input | 5-pin DIN |
| CV Output | Single channel 1V/Octave, root note offset C1–C4 |
| Gate Output | Standard gate and S-Trig, switchable |
| Extras | Adjustable portamento, note range filter |
| Power | 9–12V DC, centre positive — or USB |
See product manual in FW Updates for full features.
MINDBURNER MIDI PRODUCTS
Hand-built in Belfast, Northern Ireland
Product Code: LoIvhzJ
Brand: Mindburner MIDI
Product Condition: New
weight: 120.0g
