MINDBURNER MIDI - MIDI Analyser - incoming MIDI message viewer with thru

What does it do?

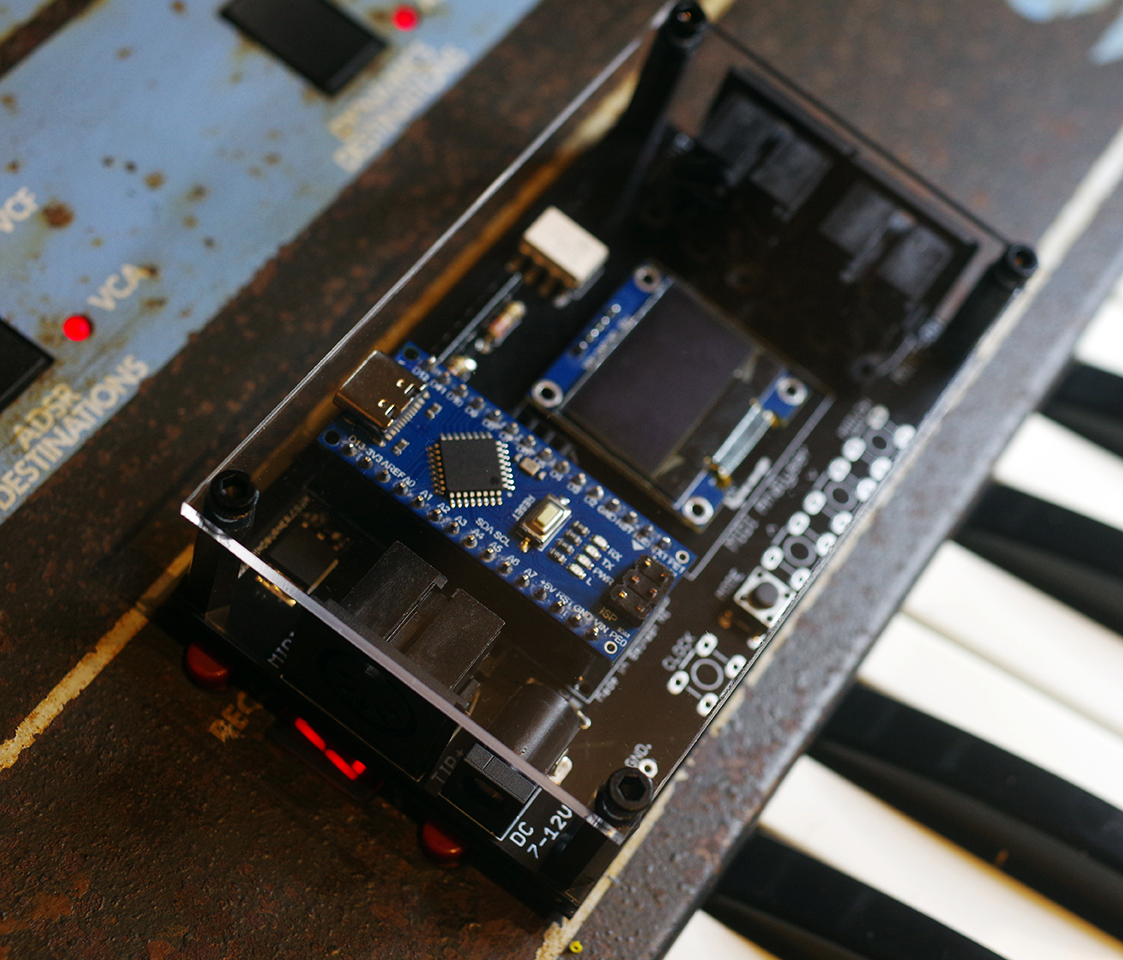

This device is a MIDI monitor. It shows incoming MIDI data. Notes,CC, Pitch bend etc.
Like a mini hardware version of the classic PC tool MIDIox.

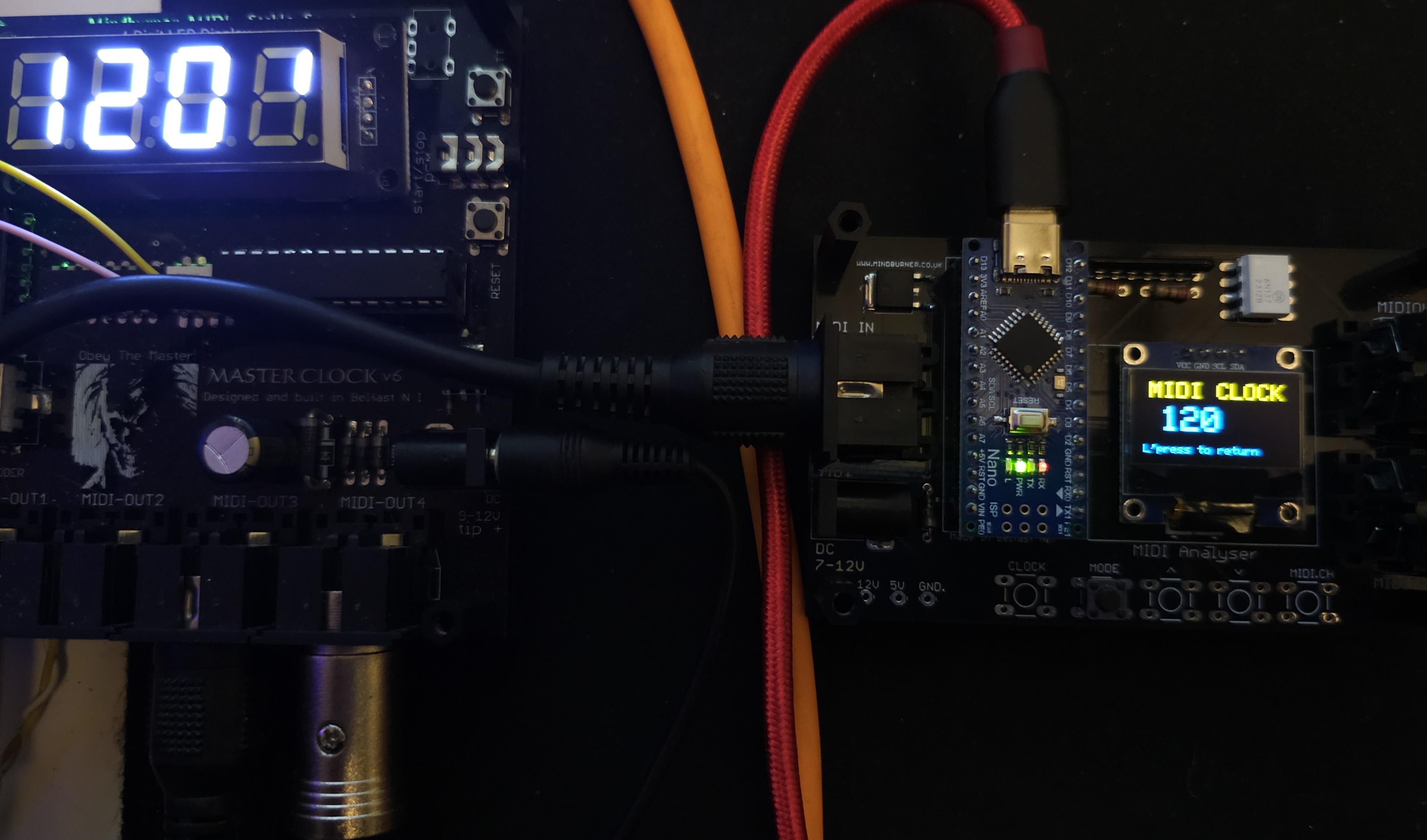

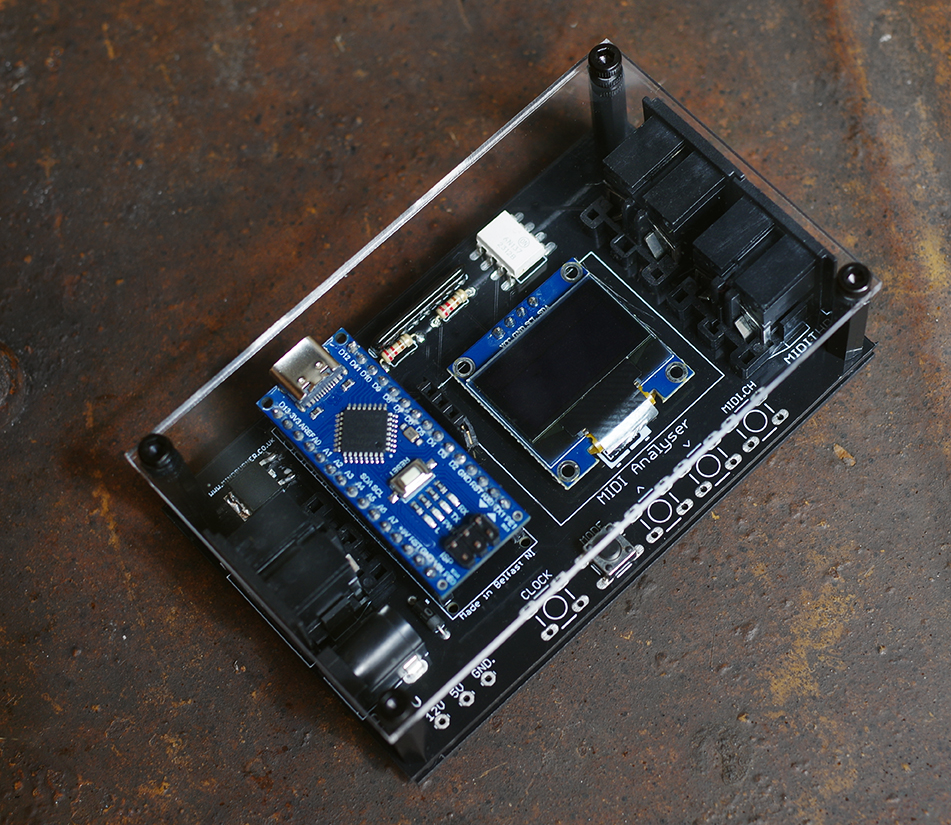

Has two MIDI thrus for handy incorporation into your existing setup. These bypass the device. Top line that’s underlined is the latest event. Longpress of the MODE button for one second enters BPM view. This will show the BPM of any incoming MIDI clock.

Long press again to return.

Power:

This can be any 2.1mm 9-12v DC supply 1A+ capacity, tip positive (not supplied)

Can also use a USB Mini B (or micro/USB C depending on stock) lead to USB charger 1A or more (not supplied)

Features and Notes:

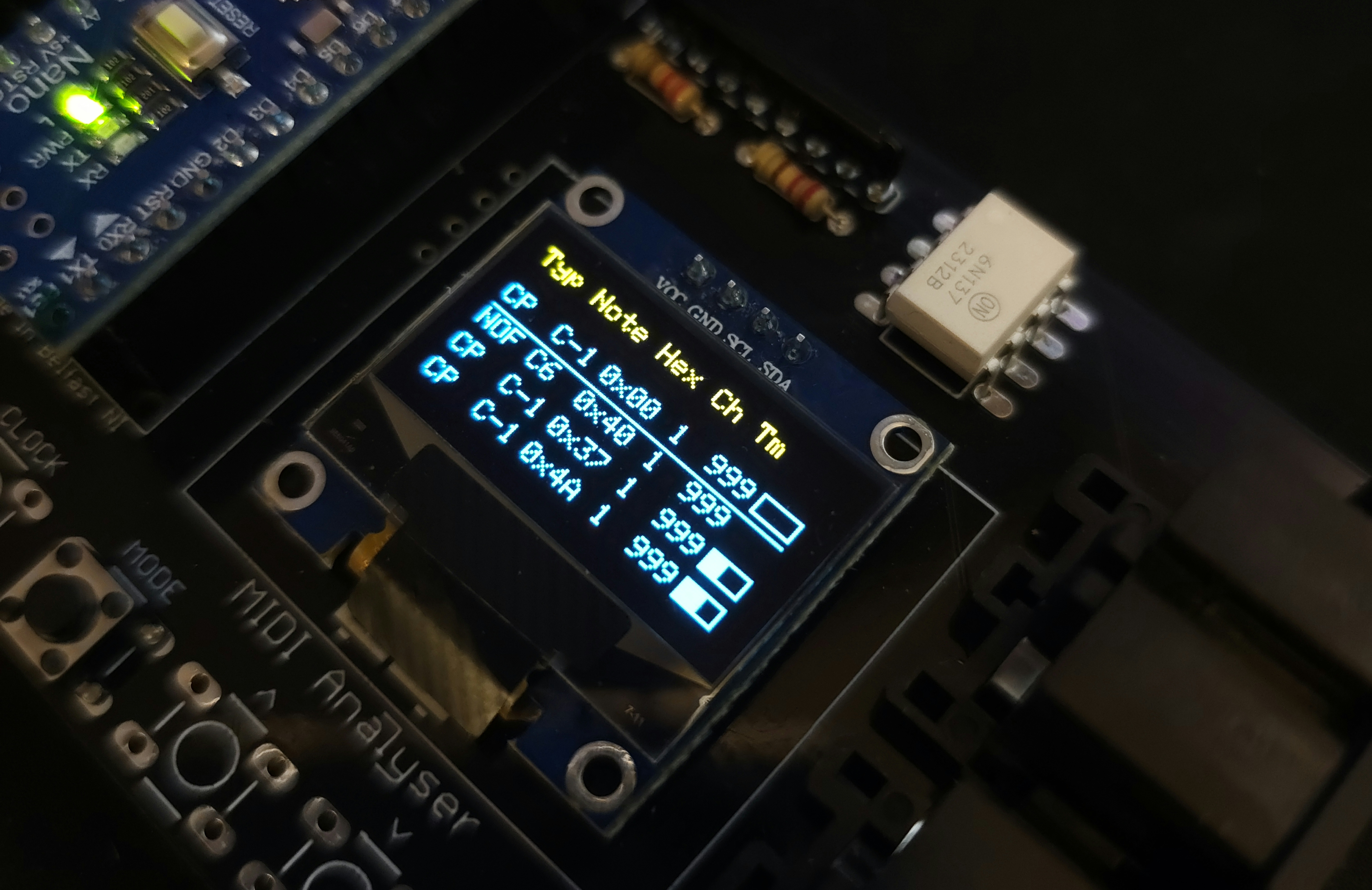

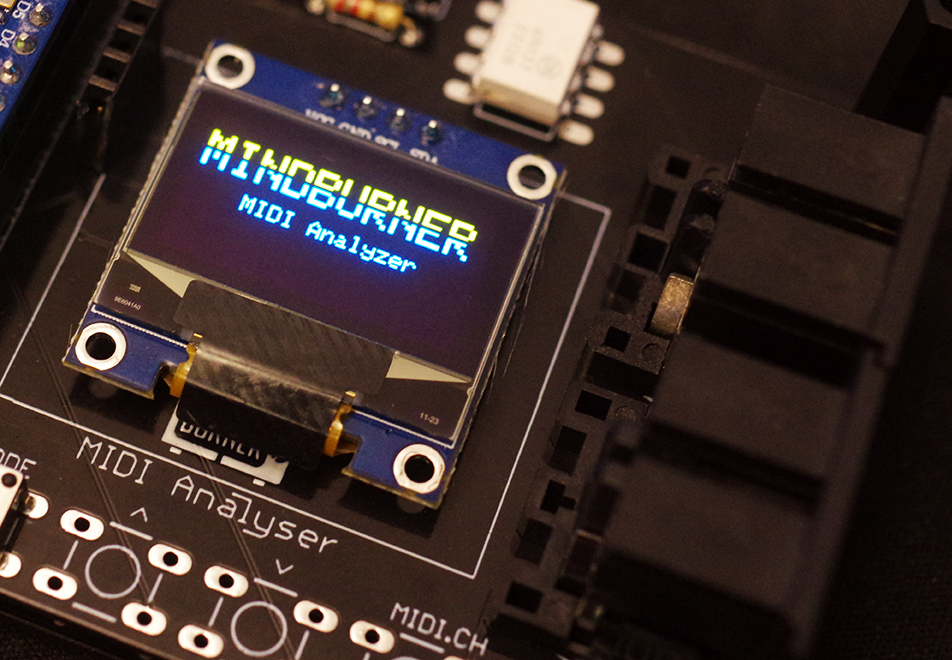

• OLED screen showing incoming MIDI data

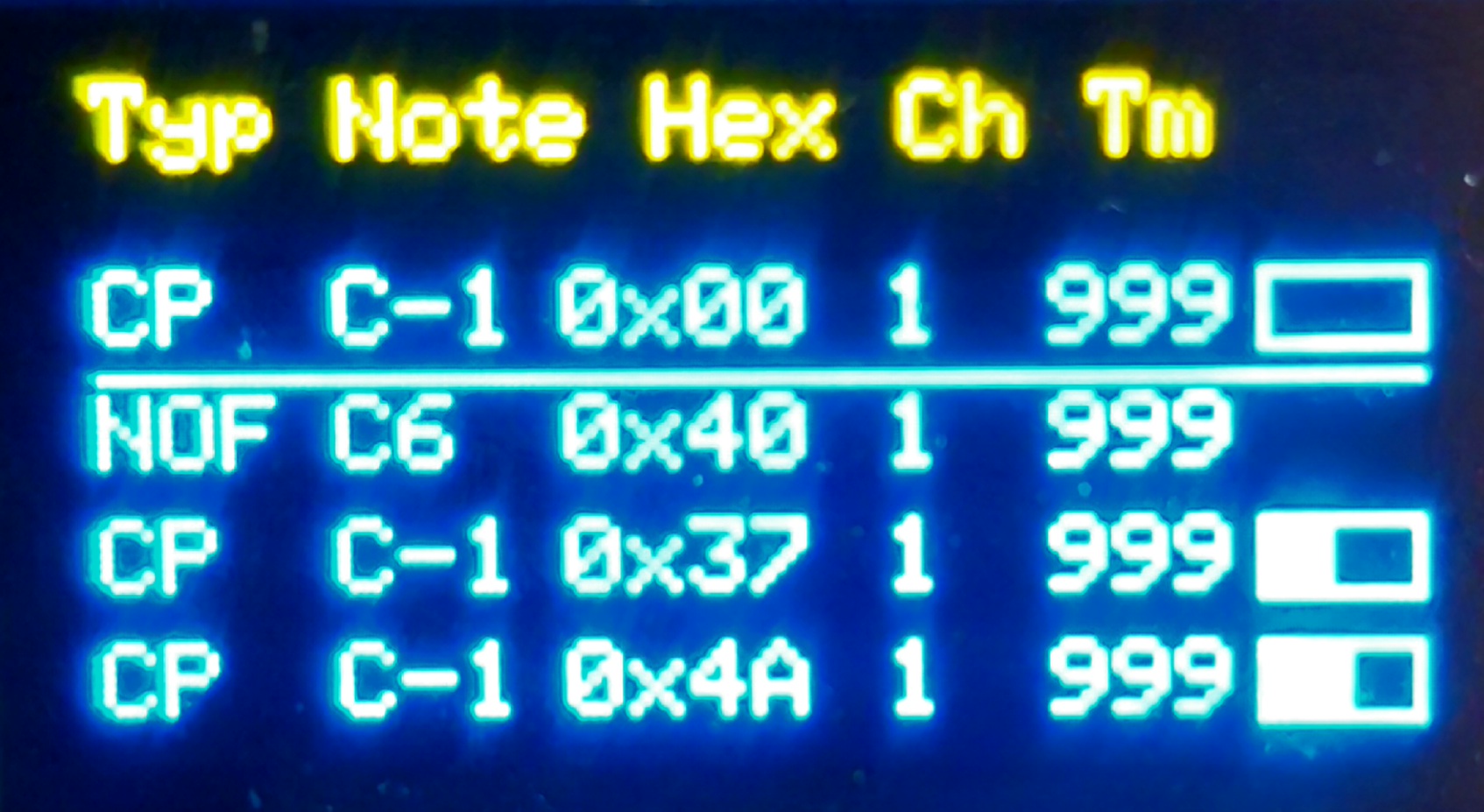

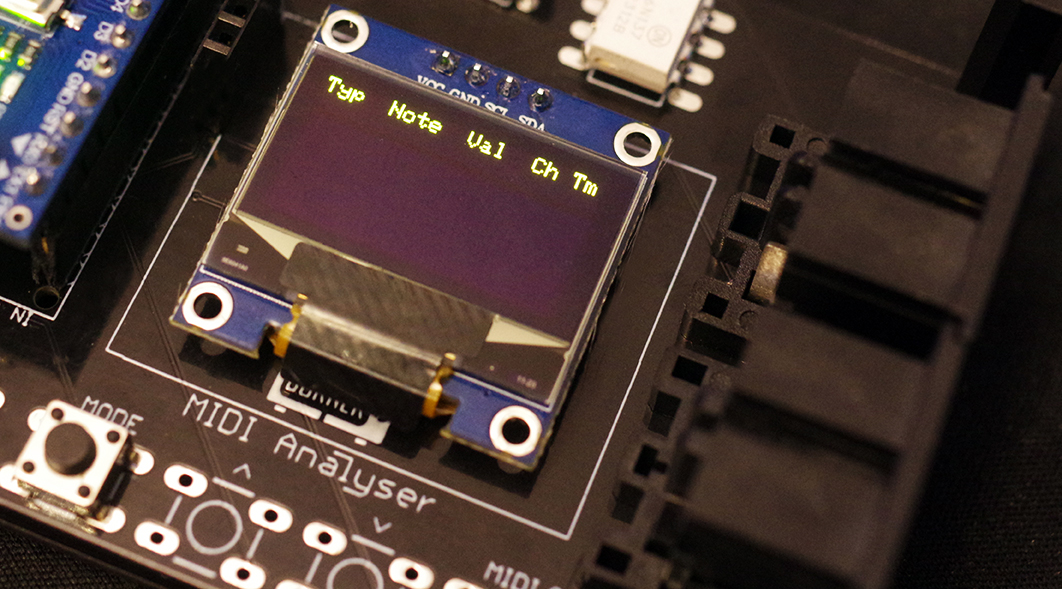

• Shows the following:

• LED lights when a MIDI message is detected
• Great for troubleshooting
• Type = event type like NOTE, CC etc
• Note = note value
• Hex  = Hex value for note
• Ch    = MIDI channel
• Tm   = received time in ms. This provides a sense of how recently each MIDI event occurred, helping the user track the timing of MIDI messages.
• Bargraph  = velocity and Pitch bend amount if received
• Two buffered MIDI thru's - sending incoming MIDI out without alteration.
• MODE button - Pauses the screen to get a better view
• USB connection is for power only, no data comms/configuration.
• Designed, programmed and built in Belfast NI
• Dimension 60 mm W x 100mm L x 25mm H
• Power consumption <200mA
