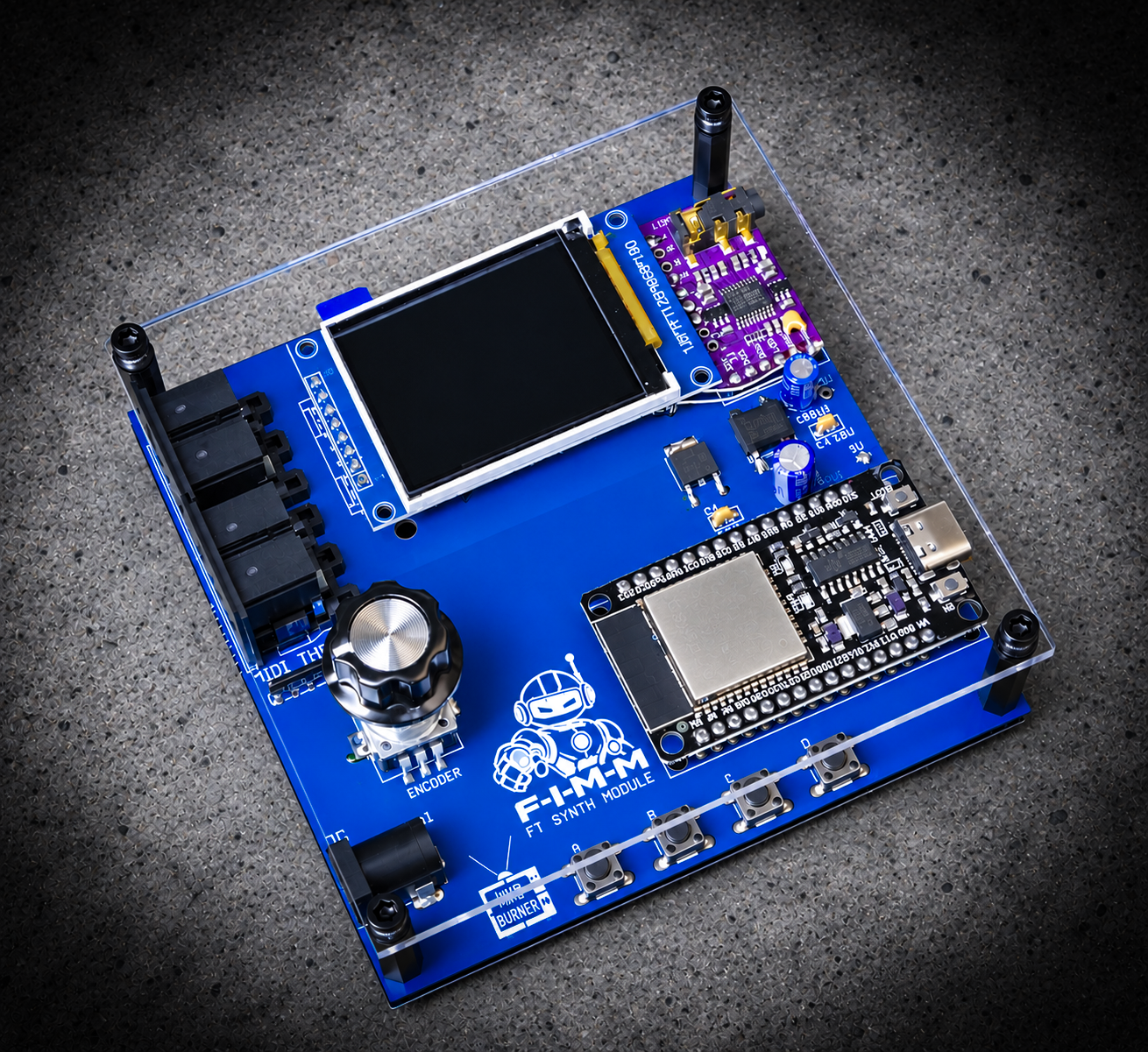

FIMM – FM SYNTH MODULE
8-Voice 4-Operator FM • X-MOD Chaos • Morph • Arpeggiator • Hand-Built in Northern Ireland
A desktop FM synthesiser – play it from any MIDI keyboard, sequencer or DAW
8
Voices
4-OP
FM Engine
40
Patch Memories
IN + THRU
MIDI DIN
What Is It?
FIMM is an 8-voice, 4-operator FM synthesiser with an engine written from scratch. It does the bright electric pianos, bells, basses, brass and metallic tones of the classic 1980s FM keyboards – and then goes much further.
The X-MOD section adds cross-modulation, ring modulation and hard sync, driven by the mod wheel, LFO, velocity, aftertouch, random or chaos sources, for sounds that growl, clang, tear and fall apart. Morph glides one patch into another as you play, and there is a built-in arpeggiator, chorus, delay and reverb. It also imports Yamaha voice banks over MIDI SysEx: 4-operator DX100, DX21, DX27 and TX81Z banks load directly, and DX7 voices are converted too – exactly when they use four operators, and as the closest 4-operator match when they use five or six.
Features
- 8-voice poly or mono with glide
- 4 operators, 8 algorithms, op 4 feedback
- Inharmonic ratios for bells, gongs and metal
- X-MOD: cross-mod, ring mod, sync + sweep
- 9 X-MOD control sources incl. RAND and CHAOS
- Morph between any two patches
- DX-style LFO with delayed vibrato
- Arpeggiator, locks to MIDI clock
- Chorus, delay (clean, tape, ping-pong), reverb
- 40 patch memories + random patch generator
- Imports DX100 / DX21 / DX27 / TX81Z banks; DX7 voices converted

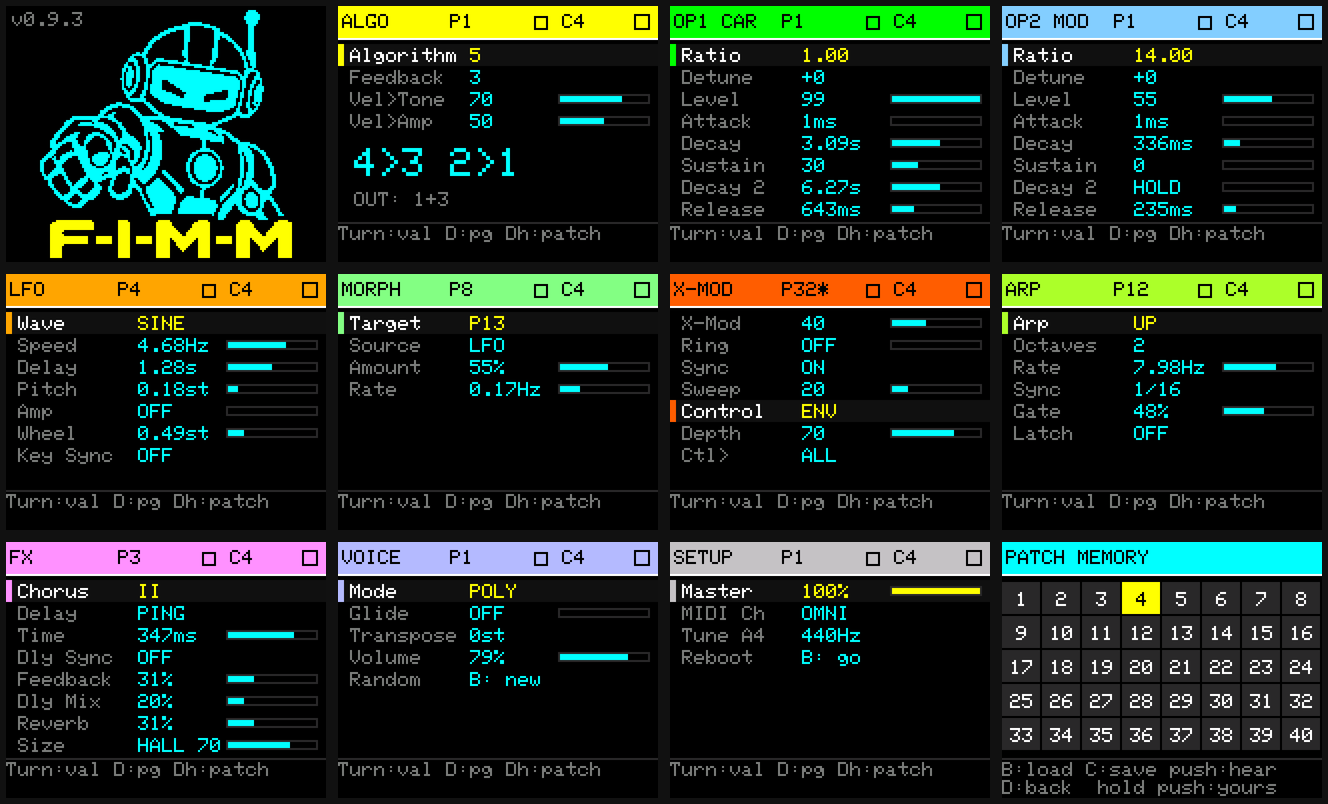

- Colour screen, 4 buttons and rotary encoder
How Do I Connect It?
- Connect your keyboard, sequencer or MIDI interface MIDI OUT to the FIMM MIDI IN (5-pin DIN)
- Connect the stereo audio output to a mixer, audio interface or powered speakers (line level)
- Optional: connect MIDI THRU to another synth – chain FIMM with KLAK or MALICE and play them as one rig
- Power from a 9–12V DC supply (9V regulated recommended, 2.1mm, any polarity – not supplied) or USB-C (phone charger or power bank – not supplied)
USB from a computer is for firmware updates; it works for playing too, but a computer port can add some background noise.
What's Included
- FIMM FM synth module
- Quick start guide (full user manual available online)
4-OPERATOR FM • X-MOD • MORPH • ARPEGGIATOR
Classic FM, gone freaky
Hear FIMM
13 sounds from the 40 patches – click to watch on YouTube
Other Products
MINDBURNER MIDI PRODUCTS
Hand-built in Belfast, Northern Ireland
Product Code: FIMM
Brand: Mindburner MIDI
Product Condition: New
weight: 164.0g
