SMART MIDI SWITCH 1>5
1 Input • 5 Outputs • Switch, Split & Mute • Hand-Built in Northern Ireland
1 > 5
MIDI In to Outputs
OLED
Shows Live Outputs
0.3ms
Latency
What Does It Do?

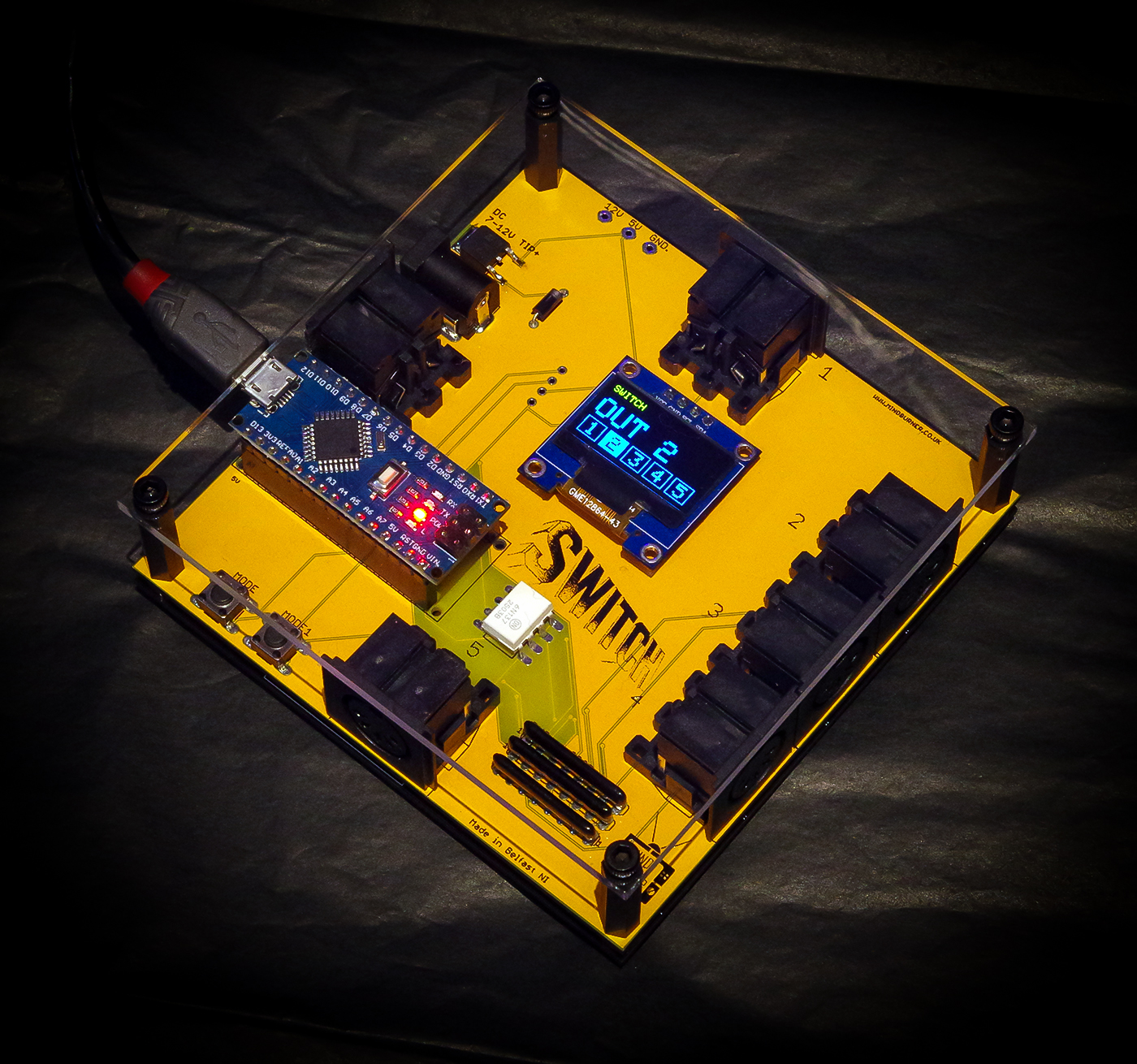

A more sophisticated version of my classic 1>5 manual switch.
Takes one MIDI input and sends it to any of five MIDI outputs, at the press of a button.
Send your keyboard or sequencer to one synth at a time, or use the built-in templates to play several synths at once.
Everything passes through untouched: notes, controllers, program changes, clock, start/stop and SysEx.
How Is It Powered?
7–12V DC adaptor (centre/tip positive), or USB via the micro-USB port. Adaptor and USB lead not supplied.
How Do I Use It?

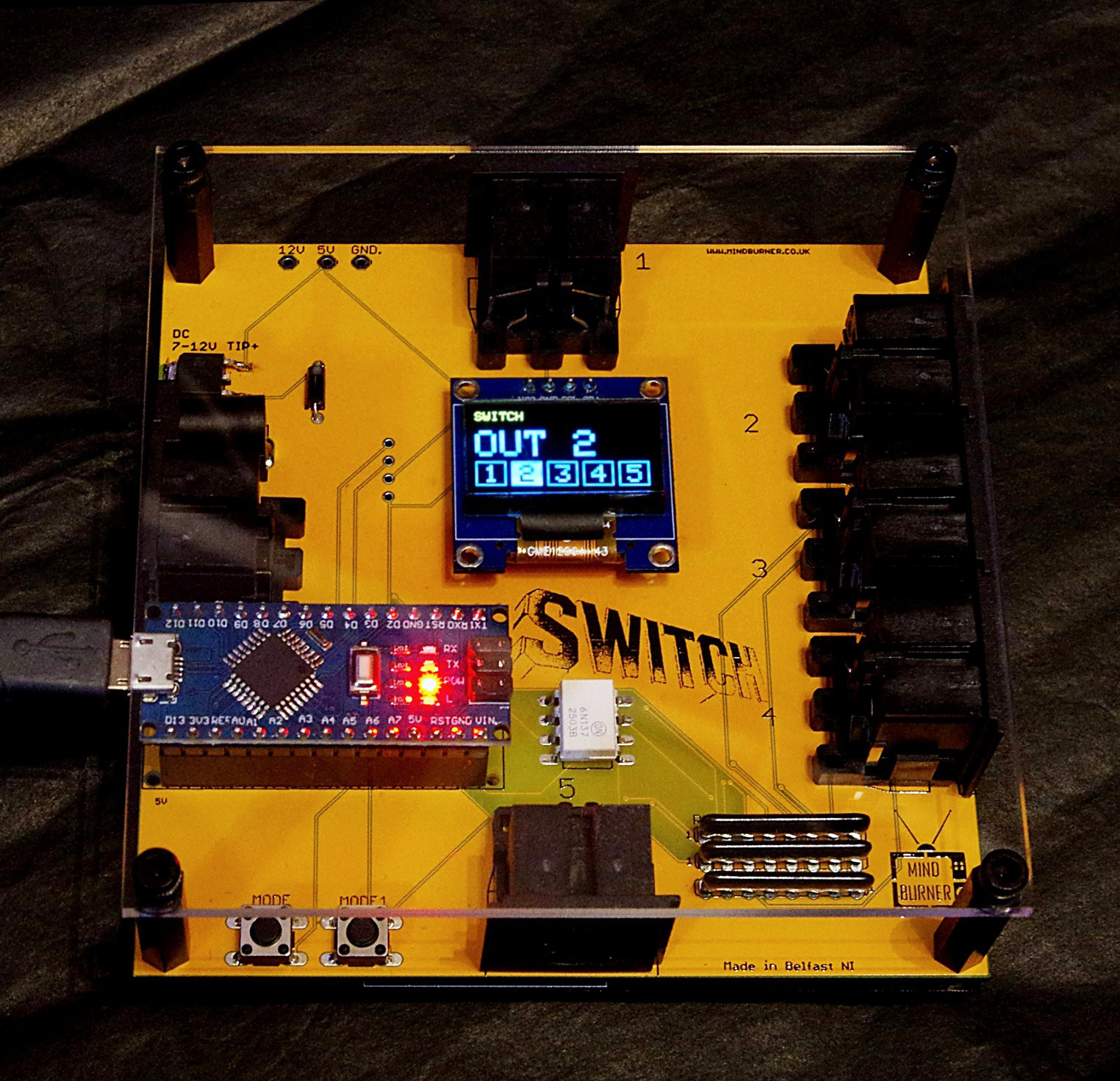

Connect your source to MIDI IN and up to five synths to OUT 1 to 5. Two buttons do everything.
SWITCH mode: tap a button to step your keyboard through each synth, one at a time.
— OR —
TEMPLATE mode: play several synths together, e.g. outputs 1+2, 3+4+5 or ALL. Layer sounds or drive a whole rig from one sequencer.
Features
- 1 × opto-isolated MIDI input, 5 × MIDI outputs (5-pin DIN)

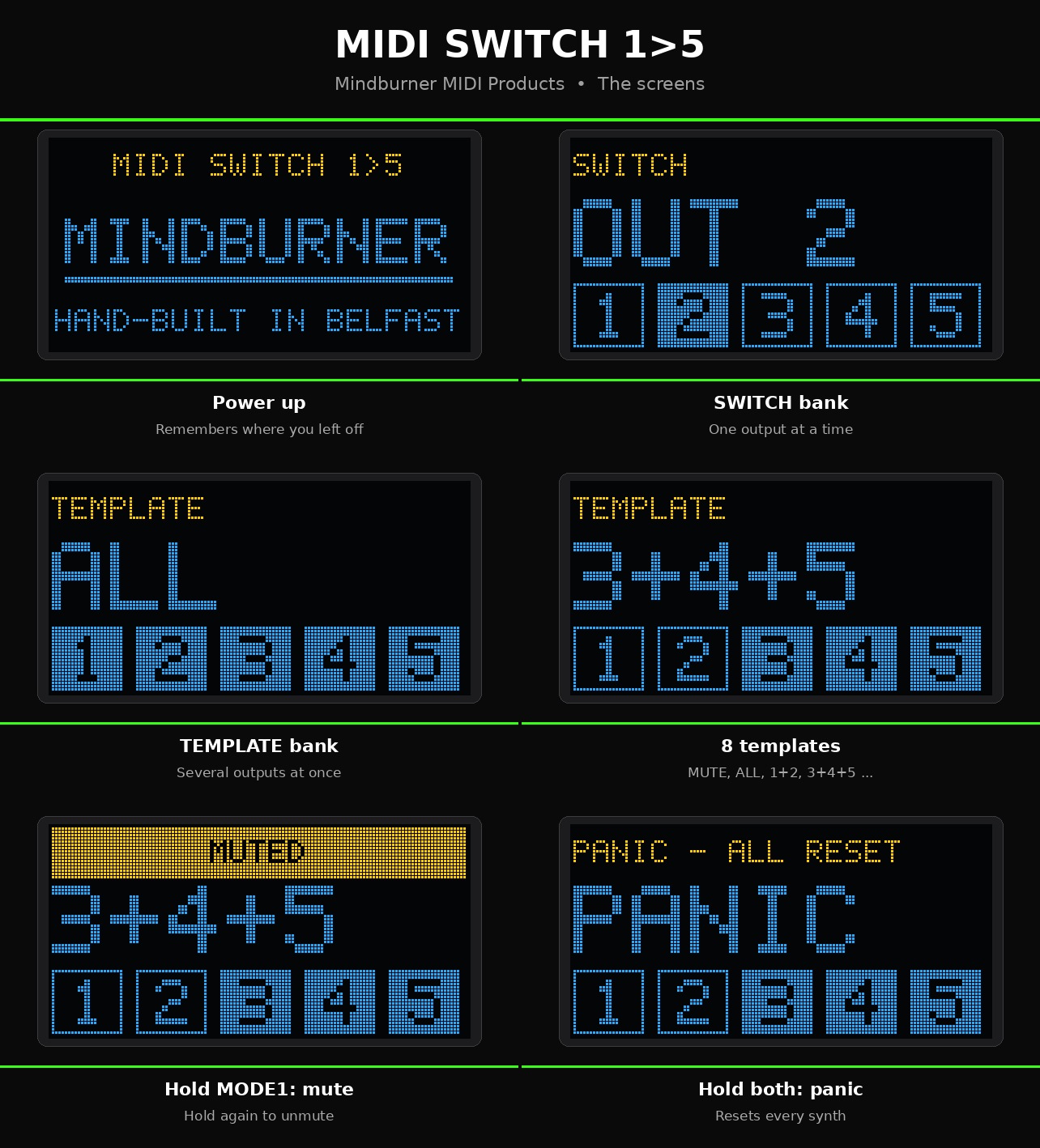

- Yellow/blue OLED display shows exactly which outputs are live
- 8 templates including MUTE and ALL
- Hold-to-mute: silence the selected outputs without losing your setting
- Clean switching: no hanging notes, no half-sent messages, pitch bend and sustain reset on the synth you leave
- Panic function: hold both buttons to reset every synth
- Remembers your last setting at power-off
- Saves unplugging cables
Note: It is not a merge device. One input is sent to one or more outputs.
MINDBURNER MIDI PRODUCTS
Hand-built in Belfast, Northern Ireland
Product Code: SMARTswitch5
Brand: Mindburner MIDI
Product Condition: New
weight: 150.0g
